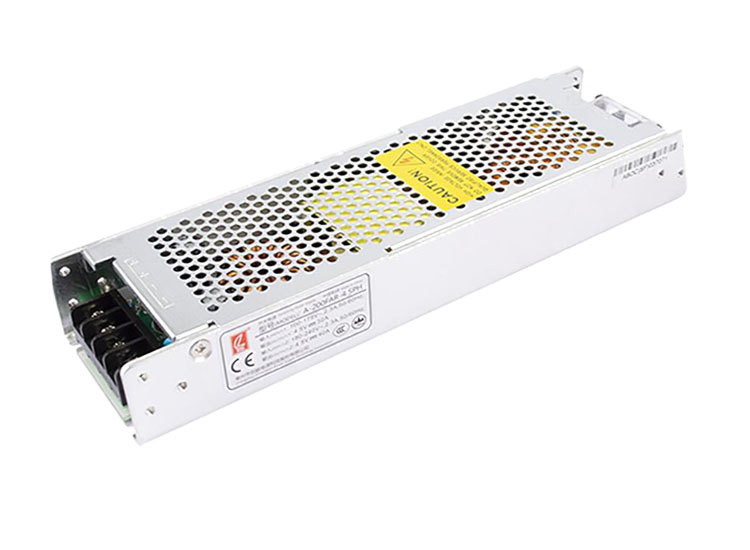

CZCL A-200FAR-4.5PH Series LED Panel Power Supply

Add to Cart:
Min:  5
  • Model: A-200FAR-PH
  • Shipping Weight: 0.85KG
  • 200 Units in Stock
  • Manufactured by: CL Power Supply

CZCL A-200FAR-4.5PH Series LED Panel Power Supply
The CZCL A-200FAR-PH LED display panel switching power supply series includes A-200FAR-5PH, A-200FAR-4.5PH, A-200FAR-4.2PH, A-200FAR-3.8PH, A-200FAR-3.3PH, and A-200FAR-2.8PH.
- Model: A-200FAR-4.5PH
- AC input voltage range: 90~264VAC, 50/60Hz
- Output voltage: 4.5V (2.8V,3.3V,3.8V, 4.2V, and 4.5V are optional.)
- Power consumption: 180W, 4.5V 40A
- Efficiency: ≥87%, PF: ≥0.95
- With the PFC function
- Protection function: short circuit, overload, over-voltage, over temperature
- Working temperature: -40~+70℃
- Dimensions: 208 x 59 x 31mm
- Compliance: CE, CCC
- Standards: EN55024EN61000-4-2,3,4,5,6,8,11GB17625.1EN61000-3-2,-3EN55022GB4943UL1012
