P8 SMD Outdoor Mobile LED Displays, Vehicle LED Screen

Starting at: $765.00
Add to Cart:

  • Model: CLS-OFMV-P8
  • Shipping Weight: 35KG
  • 1 Units in Stock

Please Choose:






P8 SMD Outdoor Mobile LED Displays, Vehicle LED Screen-Description:

Mobile led displays are the extension of digital advertising and media, which are mainly served for indoor and outdoor advertising promotions, staging backgrounds, public information, live match scores, etc. The led screen is geared with truck, trailer, ship, taxi and other traffic tools. Mobile advertising and media led display solution has become more and more diversified by the changing demands. The vehicle is normally managed by the user in local market and only the led screen part is purchased from led display manufacturer. The display is totally same as standard one, which is thick or slim in the panel design. As to trailer led display, it is usually provided for the whole kits by the manufacturer including led screen panels, control system, video processor, generator, trailer, outer frame, lifting system, wind-proof system, brake steering system, sound equipment, screen protection(OBM lightning protector),etc. The  best price with good quality above is based on per sq.m,  FOB Shenzhen terms, and it is for the screen part only.

Features:

Die casting aluminum material, much more precise with <0.1mm tolerance

Super light and thin, only 14.5KG and 80mm thickness

Easy to set up and tear down with fast locks

High brightness and wide viewing angle, >5,500nits/sqm & 140°/140°(H/V)

Great protection rating, IP65-front side & IP54-rear side

Perfect for both indoor and outdoor rental applications

Exquisite design with screw holes enables convenient maintenance

Specifications:

1 Pixel pitch 8mm
2 Pixel density 15,625 pixels/sq.m
3 Pixel configuration & LED type 1R1G1B, SMD3535
4 Module size(L*H) 320*160mm
5 Module resolution 40*20 pixels
6 Panel size(L*H*D) 640*640*80mm
7 Panel resolution 80*80 pixels
8 Weight/sq.m 35kg
9 Panel material Die casting aluminum
10 Brightness ≥5,500  nits/sq.m
11 Driving method  1/4 scan
12 Viewing angle 145°H /145°V
13 Best viewing distance >8M
14 Refresh rate 1,200Hz
15 Grey scale 8,192 levels
16 Display colors  >16.7M
17 Power consumption Max.:800W/sq.m, Avg.:320W/sq.m
18 Input voltage  110~230V/AC (±10%)
19 Input power frequency 50/ 60Hz
20 IP rating (front/rear) IP65/IP54
21 Operating environment Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness) ≥75,000 hours
24 Control system Linsn/NovaStar/Dbstar
25 Transmission distance Multi mode fiber <500m, Single mode fiber <30Km, Internet cable <100m
26 Operating system Windows 2000/NT/XP/Win7/Vista
27 Video input (with video processor) VGA, YC DVI, DHMI, SDI, RGB,CVBS,GD-SDI,etc
28 Compliant standard CE/UL/RoHS

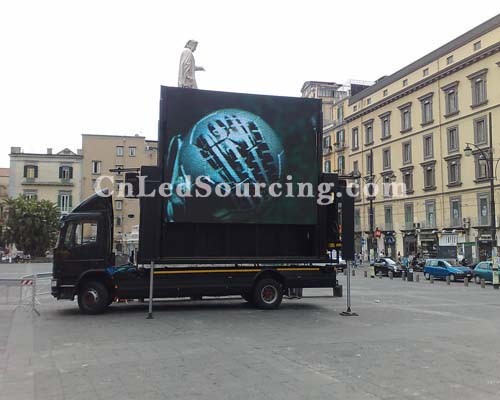

P12 Truck LED Displays-Image:

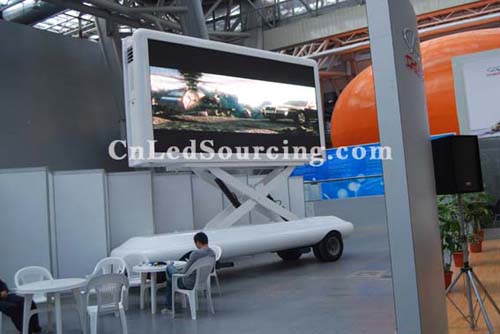

P10 Trailer LED Displays-Image:

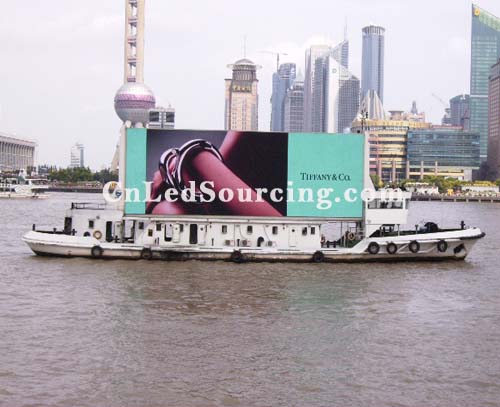

16 Ship LED Displays-Image:
