P20 Roof Top LED Screen with DIP346 1R1G1B for Advertising Purpose

Product 16/22

Previous
Return to the Product List
Next
$290.00
Sold Out
  • Model: CLS-OFR-P20
  • Shipping Weight: 65KG
  • 0 Units in Stock


P20 Roof Top LED Screen with DIP346 1R1G1B for Advertising Purpose-Description:

P20 roof top LED display screen is manufactured in a waterproof and dust-proof design so it can work perfectly in all kinds of weather conditions It is an ideal product for advertising purposes requiring stunning image impacts at long range viewing distance. Its controlling software is very user friendly in operation and multi-functional. With monitoring controller, it allows synchronous detecting and fault informing on the screen’s LED lamps, cables, temperature or smoke inside very single panel, fans working status, voltage, etc.

The price with good quality above is based on per SQM,  EXW term, and it is included with the control system.

Specifications:

1Pixel pitch20mm
2Pixel density2,500 pixels/㎡
3Pixel configuration & LED type1R1G1B,DIP346
4Module size(L*H)320*160mm/320*320mm
5Module resolution16*8 pixels
6Panel size(L*H*D)960*960*155mm/1280*960*155mm
7Panel resolution48*48 pixels
8Weight/sq.m65kg
9Panel materialCold rolled steel sheet
10Brightness≥6,500 nits/㎡
11Driving method Static
12Viewing angle110°H /60°V
13Best viewing distance>20M
14Refresh rate>400Hz
15Grey scale16,384 levels
16Display colors >16.7M
17Power consumptionMax.:900W/㎡, Avg.:380W/㎡
18Input voltage 110~230V/AC (±10%)
19Input power frequency50/ 60Hz
20IP rating (front/rear)IP65/IP54
21Operating environmentTemperature: -20°C~+50°C, Humidity: 10%~95%
22Storage environmentTemperature:-40-50°C, Humidity: 10-90%
23Life span (50% brightness)≥100,000 hours
24Control systemLinsn/NovaStar/Dbstar
25Transmission distanceMulti mode fiber <500m, Single mode fiber <30Km,Internet cable <100m
26Operating systemWindows 2000/NT/XP/Win7/Vista
27Video input (with video processor)VGA, YC DVI, DHMI, SDI, RGB,CVBS,GD-SDI,etc
28Compliant standardCE/UL/RoHS

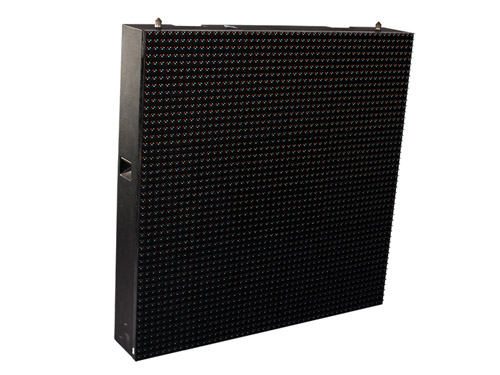

P20 Roof Top LED Screen Panel Image:
