Outdoor P16 2R1G1B Front Access LED Screen

$899.00
Add to Cart:

  • Model: CLS-OFF-P16
  • Shipping Weight: 67KG
  • 1 Units in Stock



Outdoor P16 2R1G1B Front Access LED Screen-Description:

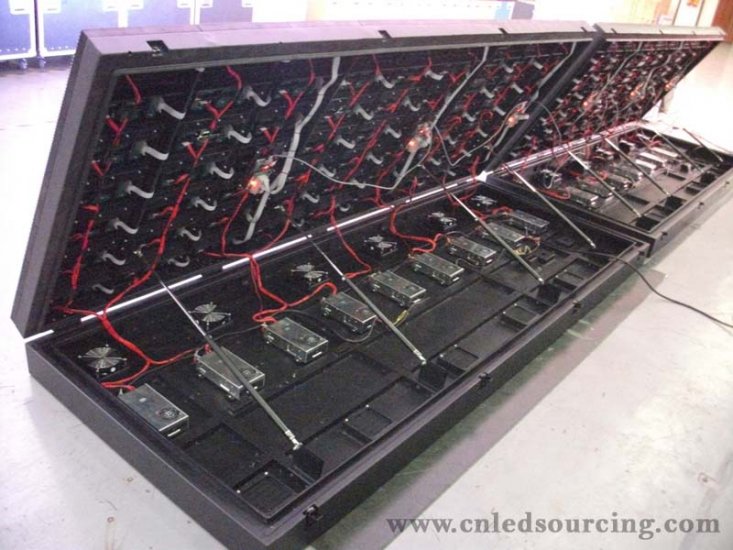

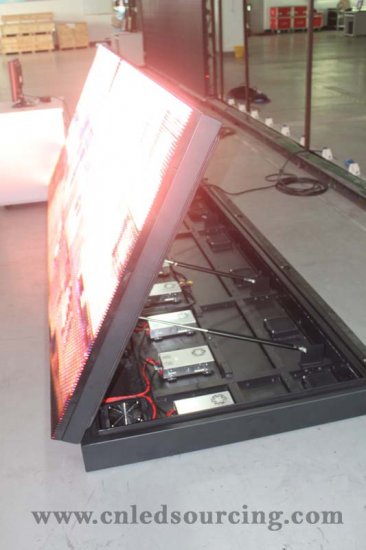

Geared with hydraulic devices, front access led screen panel allows the flexibility of maintenance service on its up front side, where there is no room on the back side. It is mainly designed for those small size screens displaying text or graphics based programs. For safety purpose, the maximum height of every single panel is no bigger than 2M and 3M for the length. And steel material is strongly recommend. The best price with good quality above is based on per sq.m, FOB Shenzhen terms, and it is not included with control system.

Features:

-Easy installation and less maintenance

-Stable performance and great heat dissipation

-Low Power consumption and long life span

-IP65/54 protection rating to perfectly work in all weather conditions

-Synchronous control with PC or asynchronous mode without PC for small size screens

-Brightness is adjustable manually or automatically against to light changing.

-All programs can be digitally edited and played in a loop automatically on the timetable.

-Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc)

-Can be controlled and monitored with camera at any time & anywhere via internet access.

-Online detecting and fault informing is optional with monitored card.

-Supports all windows operation systems-2000,XP,7,Vista for its software

Specifications:

1 Pixel pitch 16mm
2 Pixel density 3,906 pixels/
3 Pixel configuration & LED type 2R1G1B,DIP546

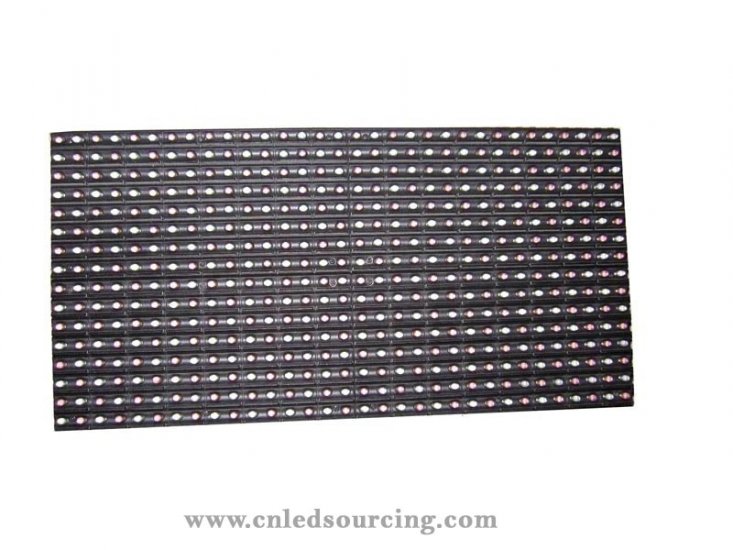

4 Module size(L*H) 256*128mm
5 Module resolution 16*8 pixels
6 Panel size(L*H*D) 1,792*1,024*155mm
7 Panel resolution 112*64 pixels
8 Weight/sq.m 67kg
9 Panel material Cold rolled steel sheet
10 Brightness ≥7,500 nits/
11 Driving method  Static
12 Viewing angle 180°H /65°V
13 Best viewing distance >16M
14 Refresh rate >400Hz
15 Grey scale >8,192 levels
16 Display colors  >16.7M
17 Power consumption Max.:1,200W/, Avg.480W/
18 Input voltage  110~230V/AC (±10%)
19 Input power frequency 50/ 60Hz
20 IP rating (front/rear) IP65/IP54
21 Operating environment Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness) ≥100,000 hours
24 Control system Linsn/NovaStar/Dbstar/Zdec,etc
25 Transmission distance Multi mode fiber <500m, Single mode fiber <30Km,Internet cable <100m
26 Operating system Windows 2000/NT/XP/Win7/Vista
27 Video input (with video processor) VGA, YC DVI, DHMI, SDI, RGB,CVBS,GD-SDI,etc
